A Wii Nunchuk for Video Editing? John Shows What is Possible with ANAVI Handle

ANAVI Handle is an open source hardware adapter built around a XIAO module and Raspberry Pi RP2040 microcontroller that connects a Wii Nunchuk to a computer via USB. It can turn the Nunchuk into a PC joystick, mouse or keyboard, making it useful for much more than retro gaming. It was released on the market back in 2024 and is nowadays globally available from Crowd Supply and Mouser, as well as Lectronz for people based in the EU. Thanks to its open source design and firmware written in CircuitPython, ANAVI Handle can be customized for different applications and creative workflows.

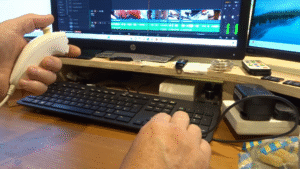

In a his recent video John Dingley explores a creative way to use ANAVI Handle by turning a Wii Nunchuk into a compact macro pad for his DaVinci Resolve workflow. DaVinci Resolve is a professional video editing and post-production software used for video editing, visual effects, color grading, and audio production. Instead of reaching for a traditional keyboard or a large macro pad, John uses the Nunchuk’s joystick and two buttons to trigger the commands he uses most often, including split clip, ripple delete, and undo. The result is a surprisingly simple controller that fits naturally in the hand and can make repetitive editing tasks feel much more intuitive. His video not only demonstrates the finished setup but also walks through the customization process step by step, showing that you don’t need to be an experienced programmer to create your own Nunchuk-based controller.

John’s setup is particularly interesting because it reflects his own approach to comfortable, efficient editing. He combines the Wii Nunchuk with a trackball mouse, allowing him to perform most of his editing with small finger movements while keeping his hands and wrists relaxed. With ANAVI Handle connected to his PC via USB, the Nunchuk becomes more than a gaming controller: it can act as a USB joystick, mouse or keyboard, opening up plenty of possibilities for custom workflows.

Kudos to John for making such a clever setup! Also, huge thanks for using open source hardware, and in particular, ANAVI Handle. Check out his video to see ANAVI Handle in action, get inspired and bring new life to your old Wii Nunchuk with your own custom setup!

You may also like

Classical Gaming on a PC with RetroPie and Nintendo Wii Nunchuk Controller

Thanks to open source it is possible to enjoy your favorite arcade, home-console, and classic PC games on a budget setup. In this video tutorial, we will transform an old netbook into a portable retro-gaming machine using Raspberry Pi OS and RetroPie.

RetroPie is a software package designed to enable the emulation of classic video game consoles that sits on top of a full OS. In this tutorial we will install it on top of a Linux distribution. RetroPie allows users to play games from a wide range of vintage systems by using emulators for platforms such as:

  • Atari 2600, 5200, 7800, Lynx
  • Commodore 64
  • Nintendo Entertainment System (NES), Super NES (SNES), Nintendo 64 (N64), Game Boy, Game Boy Advance
  • Sega Genesis/Mega Drive, Sega CD, Sega 32X, Sega Master System, Game Gear
  • Sony PlayStation 1

Required Hardware

This is the required hardware for this tutorial:

  • Personal computer (PC). For example an old netbook like Acer Aspire One D257 or Asus EeePC (or similar) with an Intel Atom or AMD CPU is a great fit.
  • ANAVI Handle open source hardware USB adapter for Wiimote attachments
  • Wii Nunchuk controller (or another compatible controller)

Software

Follow the steps below to install and configure all the required software on your computer.

Step 1: Install Raspberry Pi OS for Desktop

Raspberry Pi Desktop for PC and Mac is a 32-bit GNU/Linux operating system designed for older and less powerful computers. It’s based on Debian, a popular Linux distribution, and includes the Raspberry Pi OS desktop environment along with a set of recommended software. If you have an aging computer that can’t handle modern commercial operating systems, Raspberry Pi OS can revitalize it, making it usable again. To get started, download the OS, flash the ISO file onto a USB drive, boot from the USB on your computer, and proceed with the installation.

Step 2: Install RetroPie

Follow the official documentation for installing RetroPie on a PC running Debian or Ubuntu. Use the RetroPie setup script to perform a Basic Install.

Step 3: Transfer ROM files

After RetroPie is installed, you’ll need to move ROM files for your favorite games into the correct directories. If you followed the steps above, the main directory for all ROMs is located at ~/RetroPie/roms (or /home/pi/RetroPie/roms, which is the same). There are subdirectories for each supported emulated system, such as NES, SNES, and others.

Step 4: Connect ANAVI Handle and Nunchuk

The next step is to connect a Wii Nunchuk controller to your computer using our open-source hardware adapter. Edit config.json and enable keyboard mode:


{
    "type": "keyboard"
}

ANAVI Handle comes with open source firmware written in CircuitPython. The keyboard mode includes a D-pad (directional pad, aka arrows), along with A and B keys. Save the changes to config.json. Ensure they take effect by disconnecting and then reconnecting the ANAVI Handle. After that configure the controls in RetroPie using the Nunchuk controller and ANAVI Handle.

The RGB LED on ANAVI Handle indicates the connection state

Connection States Through RGB LED

The default open-source firmware uses the RGB LED to display three different connection states:

  • A green light means the Nunchuk controller is properly connected.
  • A blue light indicates the controller has been disconnected from the ANAVI Handle.
  • A red light warns that the Nunchuk controller is missing or not connected correctly.

In the demo video, you’ll see the green light on, signaling that you’re ready to enjoy some classic games!

Enjoy Retro Gaming on the Go

Once everything is set up, you can begin your retro-gaming adventure! Power on your computer. RetroPie will start automatically (unless you’ve configured it differently), allowing you to dive into a world of classic arcade, home console, and homebrew games. Whether you’re fighting aliens or challenging a heavyweight champ, a whole world of gaming awaits you. heavyweight champ, a whole world of gaming is waiting for you.

If you have an old Netbook, give it a second chance as portable gaming machine! Get a Nunchuk controller and our open source ANAVI Handle, follow this tutorial, and get ready to relive the golden age of gaming!

You may also like

ANAVI Handle was Certified as Open Source Hardware with UID BG000134

The Open Source Hardware Association (OSHWA) officially certified our new gadget ANAVI Handle in April. ANAVI Handle is a small USB-C adapter with XIAO RP2040 that allows you to use Wii Nunchuk-compatible controllers as USB HID peripherals on your personal computer. You can configure ANAVI Handle to adapt the controller as a joystick, keyboard or a mouse.

OSHWA, a prominent U.S.-based non-profit, manages the Certified Projects Directory and annually hosts the prestigious Open Hardware Summit. Their certification program ensures that a project’s interpretation of “open source hardware” aligns with the community’s standards, promoting transparency and accessibility.

Each certified hardware version is identified by a unique identification number (UID) that includes a country code and a numerical sequence. On April 19th, ANAVI Handle version 1.0 was certified with the UID BG000134. This UID, displayed through the OSHW Certification Mark, simplifies navigation and information access for interested parties. The “BG” prefix indicates that the ANAVI Handle is from Plovdiv, Bulgaria, a city renowned as Bulgaria’s second-largest and Europe’s oldest continuously inhabited city, with over 6000 years of history.

Our projects, including the ANAVI Handle, are distinguished by our unwavering commitment to complete openness. Every aspect of our design and functionality is made accessible to all, reflecting the true spirit of the open-source community. From the KiCad-designed printed circuit board to the highly-configurable firmware powered by CircuitPython, we exclusively use free and open-source software.

We launched ANAVI Handle on the market through a successful crowdfunding campaign at Crowd Supply. Place your order now to be among the first to experience the ultimate open-source USB adapter for your Nunchuk controller!
